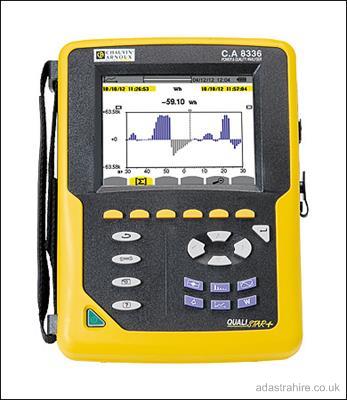

Hire Chauvin Arnoux CA8336

About this equipment

POWER AND ENERGY QUALITY ANALYSER

• IEC 61000-4-30
• IEC 61010 1000 V CAT III 600 V CAT IV

Measure all the necessary voltage, current and power parameters for full diagnosis of an electrical installation. Capture and record all the parameters, transients, alarms and wave forms simultaneously. Proven simplicity of use.

• TRMS AC+DC voltage up to 1,000 V TRMS
• AC+DC current: 5 mA to 10 kA depending on the sensors
• Frequency
• Power values: W, VA, var, VAD, PF, DPF, cos φ, tan φ
• Energy values: Wh, varh, VAh, VADh, BTU, toe, Joule
• Harmonics from 0 to the 50th order, phase
• Transients: up to 210 Inrush with waveform over a period > 10 minutes
• TrueInrush function
• Recording of a selection of parameters at the maximum sampling rate for several days to several weeks
• Alarms: 10,000 of 40 different types
• Peak detection
• Vectorial representation Available in more than 27 languages
• IP53 / IK08
• USB communication
• IEC 61000-4-30 Class B
• Dimensions / weight: 240 x 180 x 55 mm / 1.9 kg
