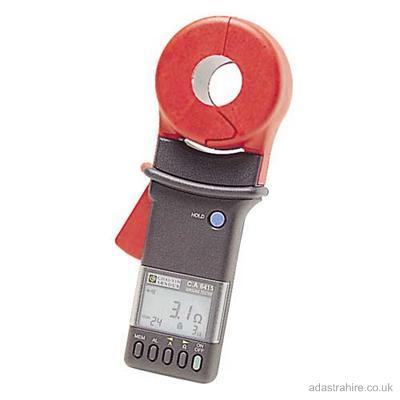

Hire Chauvin Arnoux CA6415

About this equipment

The ideal measuring instrument for parallel earth networks, the C.A 6415 earth clamp is ultra-fast and safe; it not only tests earth loops quickly but also measures leakage current discharging into the earth. The C.A 6415 is the top-of-the-range model; it has a programmable alarm and a measurement memorisation function.

• resistance : 0.10Ω to 1,200Ω (7 cal.) RMS leakage current: 1mA to 30.00A (3 cal.)
• alarm function: programming of the alarm threshold in Ω 99-measurement

• memory capacity: recording and read-off

• clamping diameter: 32mm measuring frequency: 2,400Hz

• power supply: 1 x 9V battery for a service life of 1,500 x 30-sec measurements battery charge level and remaining battery life indication visual indication of anomalies such as significant spurious currents or incorrect closure of jaws measurements in compliance with NF EN 61010

• electrical safety: EN 61010 cat.III 150V dimensions: 235 x 100 x 55mm;
• weight: 1kg
